MoEML Personography Application Profile

Purpose

To document how Map of Early Modern London personography data is modelled for compatibility with the wider LINCS data model. This document provides patterns used in the mapping of Map of Early Modern London personography data which correspond to the categories outlined in the LINCS Application Profile.

This document introduces class and property concepts as used in this specific context (LINCS and the Map of Early Modern London personography dataset), and are not complete definitions. Consult CIDOC CRM v. 7.1.1 documentation for full class and property descriptions.

Acronyms

Ontology Acronyms:

CIDOC-CRM - CIDOC Conceptual Reference Model

Vocabulary and Authority Acronyms:

Biography - The LINCS Biography Vocabulary
LINCS - LINCS minted entities
Wikidata - Wikimedia Knowledge Base

Main Classes

Entity Type	Class	Declaration Snippet (TTL)
Person	crm:E21_Person	`<person> a crm:E21_Person .`
Names	crm:E33_E41_Linguistic_Appellation	`<name> a crm:E33_E41_Linguistic_Appellation ; crm:P2_has_type aat:300417193 .`
Type	crm:E55_Type	`<https://mapoflondon.uvic.ca/mdtEncyclopediaPersonographyHistorical> a crm:E55_Type .`
Web Page	crm:E73_Information_Object	`<webpage> a crm:E73_Information_Object ; crm:P2_has_type wikidata:Q36774 .`
Web SIte	crm:E73_Information_Object	`<website> a crm:E73_Information_Object ; crm:P2_has_type wikidata:Q35127 .`
Note	rdfs:literal	`rdfs:literal`
Birth Event	crm:E67_Birth	`<Birth_Event> a crm:E67_Birth .`
Death Event	crm:E69_Death	`<Death_Event> a crm:E69_Death .`

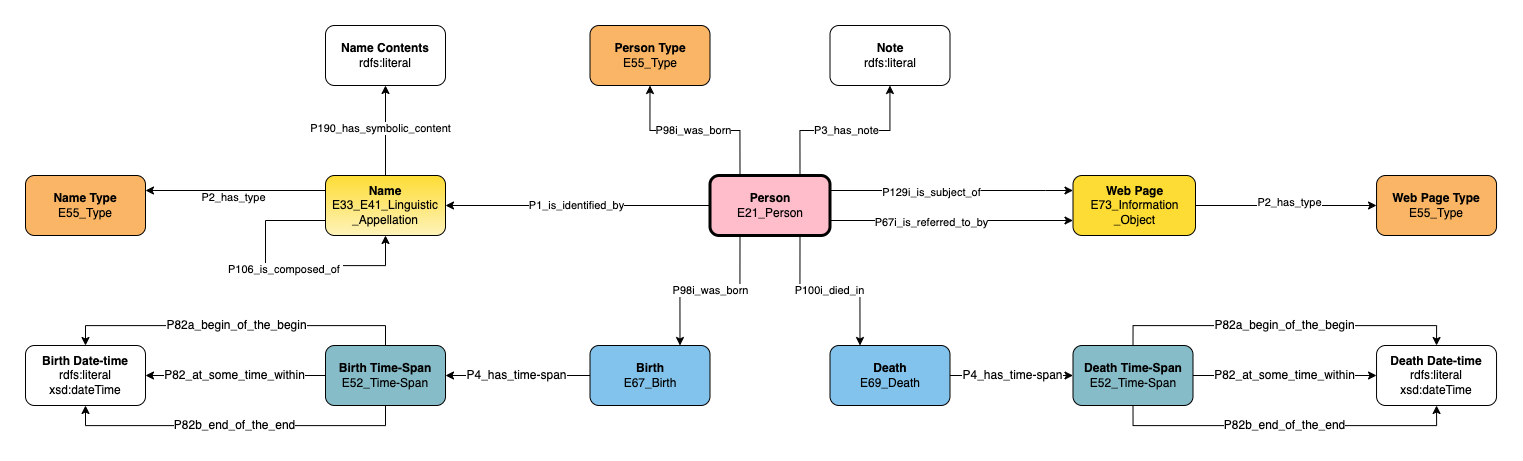

Overview Diagram

Below is an image of the application profile overview diagram. Follow this link for a zoomable, more readable version. The segments below align with the document sections.

Nodes

Basic Patterns

Identifiers

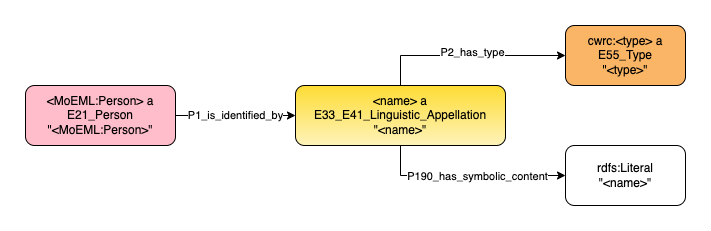

Names & Titles

Pattern/Structure Values	Definition	This pattern declares that a person is identified by a name.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → crm:E55_Type[cwrc:<type>] → crm:P190_has_symbolic_content → rdfs:Literal`
Content Values	Type of Value	Uniform Resource Identifier (URI); literal value (text)
	Expected Value	URI minted by LINCS; Literal value (text) from the MoEML Personography dataset
	Format/Requirements for the Value	URI (preferably dereferenceable); rdfs:literal
	Example Values	“Sir Nicholas Bacon”, <http://id.lincsproject.ca/biography#PreferredName>; “Nicholas”, <http://id.lincsproject.ca/cwrc#Forename>; “Bacon”, <http://id.lincsproject.ca/cwrc#Surname>;
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset states that Sir Nicholas Bacon has the display name “Sir Nicholas Bacon.” This is a preferred name. `<moeml:BACO1> → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P2_has_type → <biography:PreferredName> → crm:P190_has_symbolic_content →` `“Sir Nicholas Bacon”`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		MoEML. (2022, May 5). Map of Early Modern London. https://mapoflondon.uvic.ca/ Brown, S., Cummings, J., Drudge-Wilson, J., Faulkner, C., Lemak, A., Martin, K., Mo, A., Penancier, J., Simpson, J., Singh, G., Stacey, D., & Warren, R. (2020, July 14). The CWRC Ontology Specification 0.99.86. The Canadian Writing Research Collaboratory. https://sparql.cwrc.ca/ontologies/cwrc.html#
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML foaf:name; MoEM foafL:familyName; MoEML foaf:firstName; MoEML foaf:title

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<MoEML:Person>" ;
	crm:P1_is_identified_by <name>.

<name> a crm:E33_E41_Linguistic_Appellation ;
	rdfs:label "<name>" ;
	crm:P2_has_type cwrc:<type> ;
	crm:P190_has_symbolic_content "<name>" .

cwrc:<type> a crm:E55_Type ;
	rdfs:label "<type>" .

SPARQL: Coming Soon

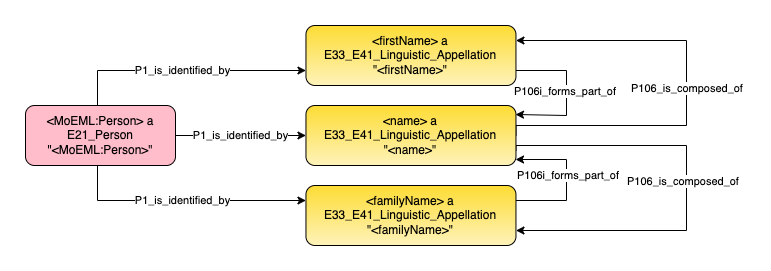

Name Formation

Pattern/Structure Values	Definition	This pattern describes the relationships between names.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P106_is_composed_of → crm:E33_E41_Linguistic_Appellation` `crm:E21_Person → crm:P1_is_identified_by → crm:E33_E41_Linguistic_Appellation → crm:P106i_forms_part_of → crm:E33_E41_Linguistic_Appellation`
Content Values	Type of Value	Uniform Resource Identifier (URI); literal value (text)
	Expected Value	URI minted by LINCS; Literal value (text) from the MoEML Personography dataset
	Format/Requirements for the Value	URI (preferably dereferenceable); rdfs:literal
	Example Values	“Sir Nicholas Bacon”; “Nicholas”; “Bacon”
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset states that Sir Nicholas Bacon has the display name of “Sir Nicholas Bacon”, which is itself made up of “Nicholas” and “Bacon.” `<moeml:BACO1> → crm:P1_is_identified_by → <lincs:foaf_name/Sir_Nicholas_Bacon> → crm:P106_is_composed_of → <lincs:foaf_firstName/Nicholas>` `<moeml:BACO1> → crm:P1_is_identified_by → <lincs:foaf_firstName/Nicholas> → crm:P106i_forms_part_of → <lincs:foaf_name/Sir_Nicholas_Bacon>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		MoEML. (2022, May 5). Map of Early Modern London. https://mapoflondon.uvic.ca/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML foaf:name; MoEML foaf:familyName; MoEML foaf:firstName

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<MoEML:Person>" ;
	crm:P1_is_identified_by <name> , <firstName> , <familyName>.

<name> a crm:E33_E41_Linguistic_Appellation ;
	crm:P106_is_composed_of <firstName> , <familyName> .

<firstName> a crm:E33_E41_Linguistic_Appellation ;
	crm:P106i_forms_part_of <name> .

<familyName> a crm:E33_E41_Linguistic_Appellation ;
	crm:P106i_forms_part_of <name> .

SPARQL: Coming Soon

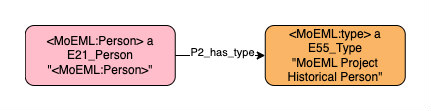

Types

Pattern/Structure Values	Definition	This pattern declares that a person is a MoEML Historical Person.
Pattern/Structure Values	Abstraction	crm:E21_Person → crm:P2_has_type → crm:E55_Type
Content Values	Type of Value	Uniform Resource Identifier (URI); literal value (text)
	Expected Value	URI from the MoEML Personography dataset; Literal value (text) from the MoEML Personography dataset
	Format/Requirements for the Value	URI (preferably dereferenceable); rdfs:literal
	Example Values	<https://mapoflondon.uvic.ca/mdtEncyclopediaPersonographyHistorical>
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset declares that Sir Nicholas Bacon is a historical person. `<moeml:BACO1> → crm:P2_has_type → <moeml:mdtEncyclopediaPersonographyHistorical>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		MoEML. (2022, May 5). Map of Early Modern London. https://mapoflondon.uvic.ca/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML rdf:type

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<name>" ;
    crm:P2_has_type moeml:mdtEncyclopediaPersonographyHistorical .

moeml:mdtEncyclopediaPersonographyHistorical a crm:E55_Type ;
	rdfs:label "MoEML Project Historical Person" .

SPARQL: Coming Soon

Describing or Referencing a Person

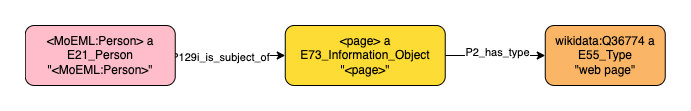

Subject of a Web Page

Pattern/Structure Values	Definition	This pattern declares that a person is the main subject of a web page.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P129i_is_subject_of → crm:E73_Information_Object → crm:P2_has_type → crm` `wikidata:Q36774`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from the MoEML Personography dataset
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<https://en.wikipedia.org/wiki/Nicholas_Bacon_(Lord_Keeper)>; <https://en.wikipedia.org/wiki/William_Fleetwood_(judge)>; <https://en.wikipedia.org/wiki/Sir_Henry_Hobart,_1st_Baronet>
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset states that Sir Nicholas Bacon is the subject of a webpage. `<moeml:BACO1> → crm:P129i_is_subject_of → crm:E73_Information_Object → crm:P2_has_type → <wikidata:Q36774>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML dc:source

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<MoEML:Person>" ;
	crm:P129i_is_subject_of <page>.

<page> a crm:E73_Information_Object ;
	rdfs:label "<page>" ;
	crm:P2_has_type wikidata:Q36774 .

wikidata:Q36774 a crm:E55_Type ;
	rdfs:label "web page" .

SPARQL: Coming Soon

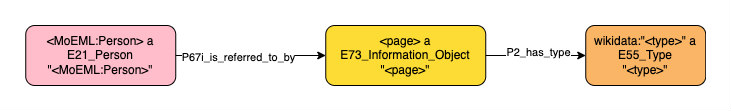

Mentioned or Referenced by a Web Page or Website

Pattern/Structure Values	Definition	This pattern declares that a person is referred to by a web page or website.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P67i_is_referred_to_by → crm:E73_Information_Object → crm:P2_has_type → crm:E55_Type`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI from the MoEML Personography dataset
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<https://masl.library.utoronto.ca/person/762>; <https://mapoflondon.uvic.ca/>; <https://doi.org/10.1093/ref:odnb/13391>
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset states that John Stokker is referred to by a webpage. `<moeml:STOK10> → crm:P67i_is_referred_to_by → crm:E73_Information_Object → crm:P2_has_type → <wikidata:Q36774>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		The Wikimedia Foundation. (2021). Wikidata. https://www.wikidata.org/
Discussion Elements Pertaining to the Pattern		Types: web page (wikidata:Q36774) and website (wikidata:Q35127)
MoEML Elements Following this Pattern		MoEML foaf:page

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<name>" ;
	crm:P67i_is_referred_to_by <page>.

<page> a crm:E73_Information_Object ;
	rdfs:label "<page>" ;
	crm:P2_has_type wikidata:"<type>" .

wikidata:"<type>" a crm:E55_Type ;
	rdfs:label "<type>" .

SPARQL: Coming Soon

Note

Pattern/Structure Values	Definition	This pattern declares that a person has a note.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P3_has_note → rdfs:Literal`
Content Values	Type of Value	literal value (text)
	Expected Value	Literal value (text) from the MoEML Personography dataset
	Format/Requirements for the Value	rdfs:literal
	Example Values	"Sheriff of London\n 1477-1478.\n Member of the Drapers’ Company. Not to be confused\n with John Stokker." ; "Sheriff of London\n 1337-1338.\n Member of the Bladers’ Company."; "Wife of Andrew Pikeman. Buried at St.\n Botolph, Billingsgate."
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset states that John Stokker has the following note: “Sheriff of London\n 1477-1478.\n Member of the Drapers’ Company. Not to be confused\n with John Stokker." `<moeml:STOK10> → crm:P3_has_note →` `“Sheriff of London\n 1477-1478.\n Member of the Drapers’ Company. Not to be confused\n with John Stokker."`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		MoEML. (2022, May 5). Map of Early Modern London. https://mapoflondon.uvic.ca/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML bio:olb

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<MoEML:Person>" ;
	crm:P3_has_note "<note>".

SPARQL: Coming Soon

Persons

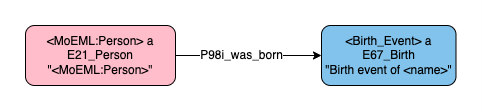

Birth

Pattern/Structure Values	Definition	This pattern declares that a person was born.
Pattern/Structure Values	Abstraction	crm:E21_Person → crm:P98i_was_born → crm:E67_Birth
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://temp.lincsproject.ca/persons/birth/JOAN5>; <http://temp.lincsproject.ca/persons/birth/ALEX4>; <http://temp.lincsproject.ca/persons/birth/FERD2>
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset declares that Sir Nicholas Bacon was born. `<moeml:BACO1> → crm:P98i_was_born → <lincs:birth/BACO13>`
Case Examples	Edge Case Example & Abstraction	N/A
Resource Links		N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML bio:Birth

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<name>" ;
	crm:P98i_was_born <Birth_Event> .

<Birth_Event> a crm:E67_Birth ;
	rdfs:label "Birth event of <name>" .

SPARQL: Coming Soon

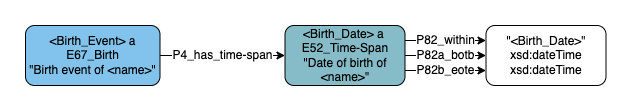

Birth Date

Pattern/Structure Values	Definition	This pattern declares that a person was born on a date.
Pattern/Structure Values	Abstraction	`crm:E67_Birth → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → rdfs:Literal → crm:P82a_begin_of_the_begin → xsd:dateTime → crm:P82b_end_of_the_end → xsd:dateTime`
Content Values	Type of Value	literal value (text); date-time value
	Expected Value	Literal value (text) from the MoEML Personography dataset; date-time value from the MoEML Personography dataset
	Format/Requirements for the Value	rdfs:literal; xsd:dateTime
	Example Values	“1513-08-14”, “0899”; “1545”
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset declares that Sir Nicholas Bacon was born in 1510. `<moeml:BACO1> → crm:P98i_was_born → crm:E67_Birth → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “1510” → crm:P82a_begin_of_the_begin → “1510-01-01” → crm:P82b_end_of_the_end → “1510-12-31”`
Case Examples	Edge Case Example & Abstraction	bio:precedingEvent: Only P82, P82a The Map of Early Modern London Personography dataset declares that Edward the Confessor was born after 1003. `<moeml:EDWA7> → crm:P98i_was_born → crm:E67_Birth → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “After 1510” → crm:P82a_begin_of_the_begin → “1510-12-31”` `bio:followingEvent: Only P82, P82b` The Map of Early Modern London Personography dataset declares that Christine Barantyn was born before 1415. `<moeml:BARA2> → crm:P98i_was_born → crm:E67_Birth → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “Before 1415” → crm:P82b_end_of_the_end → “1415-01-01”`
Resource Links		W3C. (2012, April 5). W3C XML Schema Definition Language (XSD) 1.1 Part 1: Structures . https://www.w3.org/TR/xmlschema11-1/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML bio:Birth

Pattern in TTL:

<Birth_Event> a crm:E67_Birth ;
	rdfs:label "Birth event of <name>" ;
	crm:P4_has_time-span <Birth_Date> .

<Birth_Date> a crm:E52_Time-Span ;
	rdfs:label "Date of birth of <name>" ;
	crm:P82_at_some_time_within "<Birth_Date>" ;
	crm:P82a_begin_of_the_begin "<Birth_Date>"^^xsd:dateTime ;
	crm:P82b_end_of_the_end "<Birth_Date>"^^xsd:dateTime .

SPARQL: Coming Soon

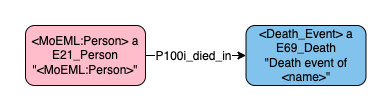

Death

Pattern/Structure Values	Definition	This pattern declares that a person died.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P100i_died_in→ crm:E69_Death`
Content Values	Type of Value	Uniform Resource Identifier (URI)
	Expected Value	URI minted by LINCS
	Format/Requirements for the Value	URI (preferably dereferenceable)
	Example Values	<http://temp.lincsproject.ca/persons/death/WALS1>; <http://temp.lincsproject.ca/persons/death/WEST17>; <http://temp.lincsproject.ca/persons/death/DALL3>
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset declares that Christine Barantyn died. `<moeml:BARA2> → crm:P100i_died_in → <moeml:death/BARA2>`
Case Examples	Edge Case Example & Abstraction	bio:precedingEvent: Only P82, P82a The Map of Early Modern London Personography dataset declares that Ælfwine of Elmham died after 1023. `<https://mapoflondon.uvic.ca/AELF1> → crm:P100i_died_in → crm:E69_Death → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “After 1023” → crm:P82a_begin_of_the_begin → “1023-12-31”`
Resource Links		N/A
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML bio:Death

Pattern in TTL:

<MoEML:Person> a crm:E21_Person ;
	rdfs:label "<MoEML:Person>" ;
	crm:P100i_died_in <Death_Event> .

<Death_Event> a crm:E69_Death ;
	rdfs:label "Death event of <name>" .

SPARQL: Coming Soon

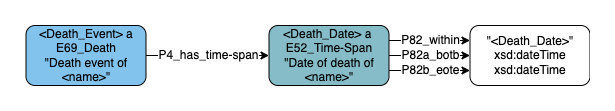

Death Date

Pattern/Structure Values	Definition	This pattern declares that a person died on a date.
Pattern/Structure Values	Abstraction	`crm:E21_Person → crm:P100i_died_in→ crm:E69_Death → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → rdfs:Literal → crm:P82a_begin_of_the_begin → xsd:dateTime → crm:P82b_end_of_the_end → xsd:dateTime`
Content Values	Type of Value	literal value (text); date-time value
	Expected Value	Literal value (text) from the MoEML Personography dataset; date-time value from the MoEML Personography dataset
	Format/Requirements for the Value	Rdfs:literal; xsd:dateTime
	Example Values	“1427”, “1571-10-27”; “1390”
Case Examples	Typical Example & Abstraction	The Map of Early Modern London Personography dataset declares that Christine Barantyn died in 1427. `<https://mapoflondon.uvic.ca/BARA2> → crm:P100i_died_in → crm:E69_Death → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “1427” → crm:P82a_begin_of_the_begin → “1427-01-01” → crm:P82b_end_of_the_end → “1427-12-31”`
Case Examples	Edge Case Example & Abstraction	bio:precedingEvent: Only P82, P82a The Map of Early Modern London Personography dataset declares that Ælfwine of Elmham died after 1023. `<https://mapoflondon.uvic.ca/AELF1> → crm:P100i_died_in → crm:E69_Death → crm:P4_has_time_span → crm:E52_Time_Span → crm:P82_at_some_time_within → “After 1023” → crm:P82a_begin_of_the_begin → “1023-12-31”`
Resource Links		W3C. (2012, April 5). W3C XML Schema Definition Language (XSD) 1.1 Part 1: Structures . https://www.w3.org/TR/xmlschema11-1/
Discussion Elements Pertaining to the Pattern		N/A
MoEML Elements Following this Pattern		MoEML bio:Death

Pattern in TTL:

<Death_Event> a crm:E69_Death ;
	rdfs:label "Death event of <name>" ;
	crm:P4_has_time_span <Death_Date> .

<Death_Date> a crm:E52_Time-Span ;
	rdfs:label "Date of death of <name>" ;
	crm:P82_at_some_time_within "<Death_Date>" ;
	crm:P82a_begin_of_the_begin "<Death_Date>"^^<xsd:dateTime ;
	crm:P82b_end_of_the_end "<Death_Date>"^^<xsd:dateTime .

SPARQL: Coming Soon

Purpose​

Acronyms​

Main Classes​

Overview Diagram​

Nodes​

Basic Patterns​

Identifiers​

Names & Titles​

Name Formation​

Types​

Describing or Referencing a Person​

Subject of a Web Page​

Mentioned or Referenced by a Web Page or Website​

Note​

Persons​

Birth​

Birth Date​

Death​

Death Date​

Purpose

Acronyms

Main Classes

Overview Diagram

Nodes

Basic Patterns

Identifiers

Names & Titles

Name Formation

Types

Describing or Referencing a Person

Subject of a Web Page

Mentioned or Referenced by a Web Page or Website

Note

Persons

Birth

Birth Date

Death

Death Date
